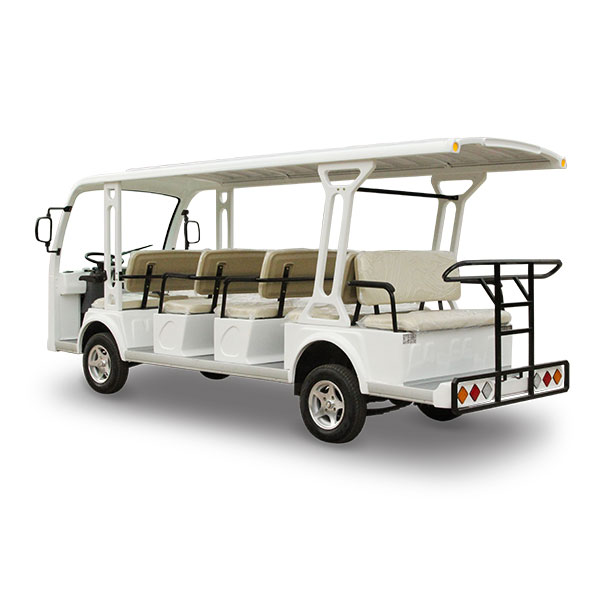

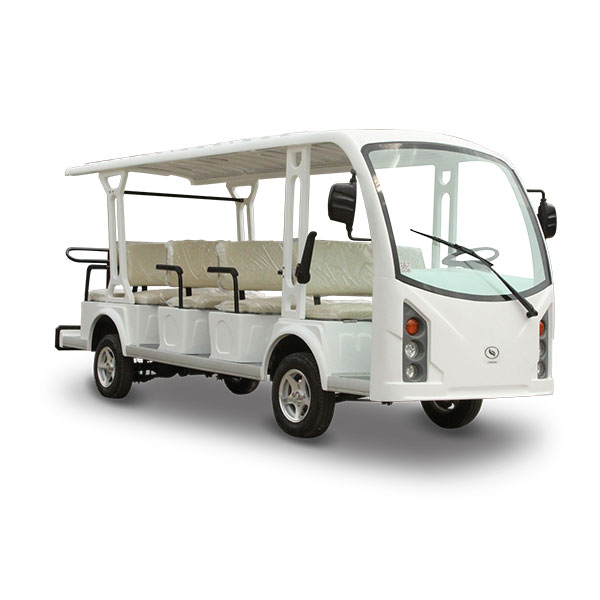

Electric love 2018 shuttle bus LQY146
standard model design electric shuttle bus manufacturers
installation much easier electric shuttle bus manufacturers
new design of electric shuttle vehicles bus

Electric love 2018 shuttle bus LQY146

Electric shuttle bus LQY146 is Newest model for the electric shuttle bus. The top roof is made of aluminum alloy and fiber glass instead of 2 layers fiber glass. The bus face design looks very good. Standard model design makes the installation much easier. This model has electric power steering system and AC system as the optional fittings. What’s more, it can be upgraded to the closed cars with the doors. Even in the cold season, also perfect to serve the VIP’S, visitors, students around your hotel, resort, convention center or school.

Technical specifications

  • Passenger Capacity: 14 people
  • Maximum loading: 1180 kg
  • Range: 90 km
  • Maximum speed: 28km/h

FLLOW US:

PRODUCT DETAILS

Technical Specifications

New Arrival

Electric Power Steering Is A Available

The car door is available

L×W×H 4950×1480×2100mm

Motor 5kW(DC) / 7.5kW(AC)

Battery 6Vx12pcs

Passenger Capacity 14 seats

Kerb Weight 1310kg

Gross Weight 2490kg

Axle Distance 2800mm

F Tread 1280mm

R Tread 1270mm

Min. Clearance 150mm

Min Turning Radius 6.5m

Braking distance≤4.5m

Max. Speed 28km/h

Range 90km

Charging Time 8~10h

Climbing Ability(full loading) 15%(DC) / 25%(AC)






Our Electric Vehicles offers a wide range of colors, not only the colors pictured on the website. Please contact our sales for more information.



This series electric shuttle bus is the newest one in 2018. Why call it is newest, because this model can be electric shuttle car with doors or with no doors. In the cold area or cold season, the electric sightseeing bus with door can keep warm. Even in hot season, you can open the window and use the fan inside the car. We have 8 seats, 11 seats, 14 seats for this series. The plastic roof will make the parts standard and easily to assemble.



-Can we change the battery to lithium battery?

--Yes, we can leave the space and joint plug for the lithium. But we cannot offer the lithium battery with the car, as the lithium battery is the dangerous goods which do not permit shipped by normal container by sea. You can buy the battery in your local market. Just tell us the size and other request specification.

Customization & Accessories

plastic-seats

Plastic seats

rain

Rain cover

safety-bar

Safety bar

two-points-seat-belt

Two points seat belt

curtain

Sun curtain

roof-handle

Roof handle

solar-panel

Solar panel

quick-change-batteries-car

Quick change batteries car

build-in-charger

Build in charger

Shipping Info

5-tons-electric-towing-car-lqq050-5
5-tons-electric-towing-car-lqq050-4
5-tons-electric-towing-car-lqq050-3
shipping-info-3
shipping-info-4

Our standard packing is the full assembled. That means you do not need to install them when you receive the cars. We suggest the disassemble packing for this model as the standard part design is much easier for the installation, and good to save the shipping cost.
