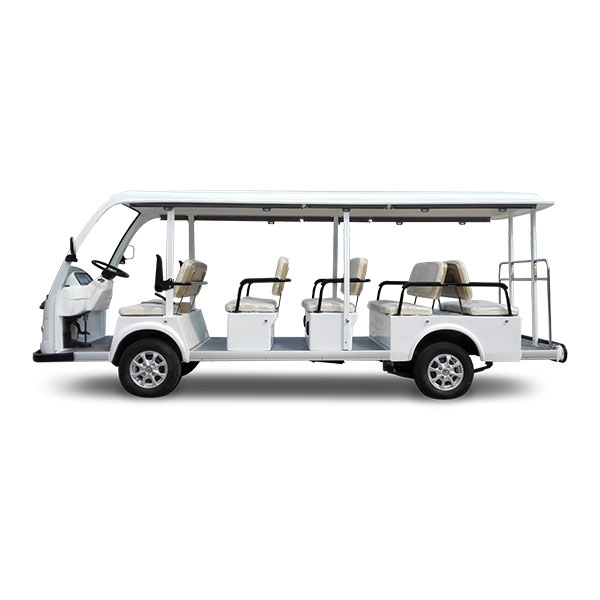

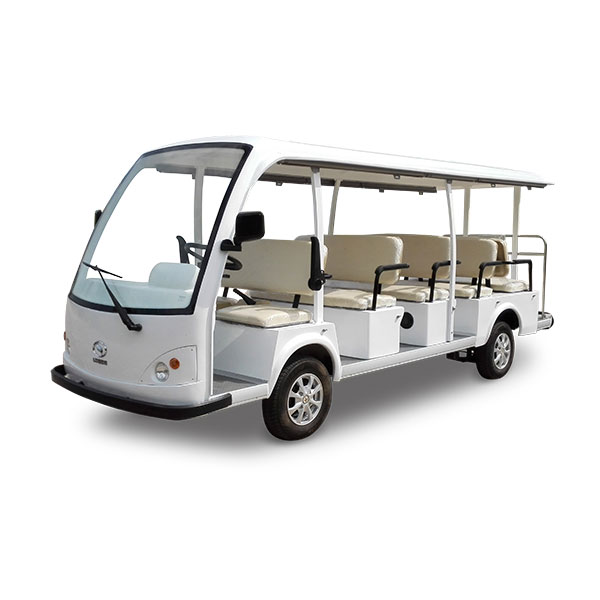

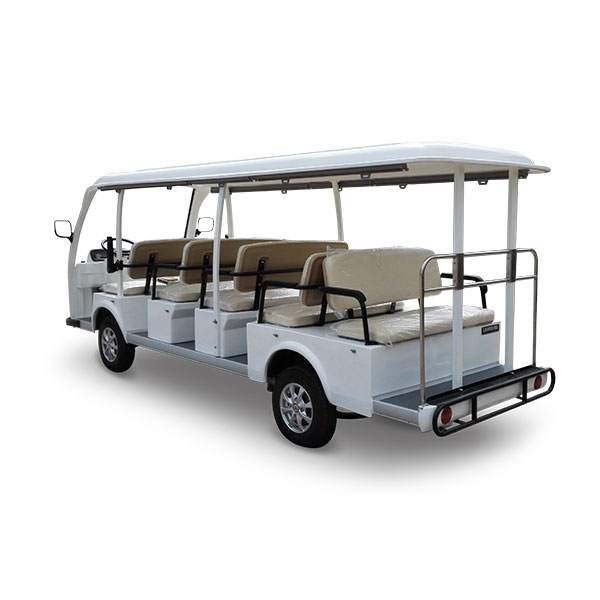

14 passenger Electric shuttle car LQY140A is the classical design from Lanqging. Popular choose for the customer. New digital display panel make the old models new face and function. This low speed 14 seats electric shuttle bus are excellent for the people moving. It is a cost-effective option for visitors, guests and staff around your hotel, factory, convention center, etc. Our shuttles contain 72 volt systems. You can also choose the optional fittings AC system which can offer better speed or climbing requirements. Right hand drive is optional for this model.
Technical specifications
FLLOW US:
PRODUCT DETAILS
Technical Specifications
Right Hand Drive Is Available
L×W×H 4960×1430×2000mm
Motor 5kW(DC) / 7.5kW(AC)
Battery 6Vx12pcs
Passenger Capacity 14 seats
Kerb Weight 1200kg
Gross Weight 2390kg
Axle Distance 2700mm
F Tread 1210mm
F Tread 1200mm
Min. Clearance 150mm
Min Turning Radius 6.5m
Braking distance≤5m
Braking distance 28km/h
Range 90km
Charging Time 8～10h
Climbing Ability(full loading) 15%(DC) / 25% (AC)
Our Electric Vehicles offers a wide range of colors, not only the colors pictured on the website. Please contact our sales for more information.
Guangzhou Langqing is one of the oldest electric buggy suppliers in China and export to all over the world. Our electric tourist car lines, for the smaller shuttles have a 48-volt system as a power source with a single battery charger. Our larger shuttles (11-23 Passenger Shuttles) contain 72 volt systems for the longer range. Some of these models may hold up to 25 or 28 passengers when our electric shuttle bus along trailer is purchased! Our electric sightseeing car’s chassis process is same as the normal car chassis technology and is robust and safe. If you need to use it by the sea, we can add extra anti-rust oil treatment for you. Different models will fit your different request.
-How long we can use for the electric shuttle car?
-Our electric shuttle bus can run 90km per charge. You can charge it overnight.
Customization & Accessories
Plastic seats
Rain cover
Safety bar
Two points seat belt
Sun curtain
Roof handle
Solar panel
Quick change batteries car
Build in charger
Shipping Info
You can choose the full assembled car package and no additional installation is required after reaching the destination. Also you can also choose the disassembled packing to save the shipping costs, but you will need to install it in your side. We will provide the necessary installation instruction.
